Blinkstick-square

Small Package

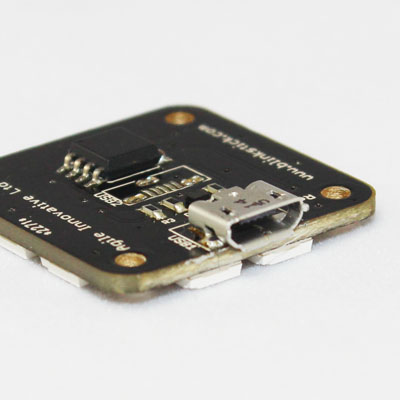

BlinkStick Square combines the features of BlinkStick Pro into one small package.

Order Yours!

Eight Bright LEDs

Why limit yourself to one pixel when you can have 8 and control them individually?


Ready to Use

BlinkStick Square comes pre-assembled and ready to connect to your computer with micro USB cable.

Plug-and-Play

Works on Windows, Linux and Mac OSX without the need of any additional drivers. Supported on a wide range or programming languages.


Patterns and Animations

With lots of code examples for your preferred programming language BlinkStick Square is ready to play colorful LED chasing animations.

Enclosure for Square

We now have 3D printed enclosures for BlinkStick Square!

Blinkstick-square-enclosure-parts-square-400
Blinkstick-square-enclosure-mounted-square-400

Easy to assemble

BlinkStick Square attaches to the base of the enclosure with 4 supplied self-tapping screws and the top of the enclosure snaps to the base with clips.

Diffuses bright LEDs

The enclosure acts as a great diffuser for all LEDs.

Blinkstick-square-enclosure-240

BlinkStick Square Features

  • Integrated micro USB socket
  • Integrated ATTiny85 with BlinkStick Square firmware
  • 8 very bright individually addressable WS2812S RGB LEDs
  • Maximum 2W of power output on all LEDs combined at full white brightness
  • Maximum power draw 500 mA
  • Powered by computer's USB port
  • Works on Windows, Linux and Mac OSX without the need of any additional drivers
  • Supported on a wide range of programming languages
  • Supports USB 1.1/2.0/3.0
  • Dimensions - length: 28 mm, width: 26 mm, height: 6.5 mm

Enclosure Features

  • 3D printed with PLA plastic
  • Comes with 4 screws to mount BlinkStick Square to the base
  • Very easy to assemble
  • We will send it assembled if you order Square and enclosure
  • Dimensions - length: 32 mm, width: 32 mm, height: 28 mm
