Blinkstick-nano
Blinkstick-nano-main-300

Improved design

BlinkStick Nano is the successor of the original BlinkStick LED kit.

Order Yours!

Two LEDs

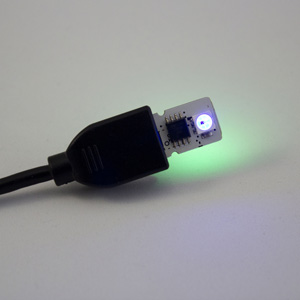

BlinkStick Nano has two super bright full color LEDs on top and bottom! Each one can be controlled individually.

Blinkstick-nano-both-sides-300
Blinkstick-nano-comparison-square-300

It is tiny!

BlinkStick just keeps getting smaller and Nano is our smallest ever notification device.

API implementations ready

All BlinkStick API implementations already support BlinkStick Nano. Python, Microsoft.NET, Mono, Node.js, Ruby, Processing, Linux, Windows or OSX are all ready for you to tinker with BlinkStick Nano.

Blinkstick-nano-ext-coord-square-300
Blinkstick-nano-enclosure-main-400

Enclosure for Nano

We now have 3D printed enclosures for BlinkStick Nano!

Easy to assemble

BlinkStick Nano fits between the two 3D printed parts which snap together.

Blinkstick-nano-enclosure-open-400

BlinkStick Nano Features

  • Board plugs directly into computer's USB port
  • Integrated ATTiny85 with BlinkStick Nano firmware
  • 2 very bright individually addressable WS2812S RGB LEDs
  • Maximum 0.3W of power output on all LEDs combined at full white brightness
  • Maximum power draw 137 mA
  • Powered by computer's USB port
  • Works on Windows, Linux and Mac OSX without the need of any additional drivers
  • Supported on a wide range of programming languages
  • Supports USB 1.1/2.0/3.0
  • Dimensions - length: 28 mm, width: 26 mm, height: 6.5 mm

Enclosure Features

  • 3D printed with PLA plastic
  • Very easy to assemble
  • We will send it assembled if you order Nano and enclosure
  • Dimensions - length: 18 mm, width: 17 mm, height: 8 mm
