BlinkStick Pro

BlinkStick Pro is the ultimate LED controller board. It is small, yet powerful enough to drive both generic and individually addressable LED strips.

Order Yours!

Breadboard Friendly

BlinkStick Pro is breadboard friendly, just solder the supplied headers and stick into breadboard for prototyping fun!

Blinkstick-pro-1-0-breadboard-led-300

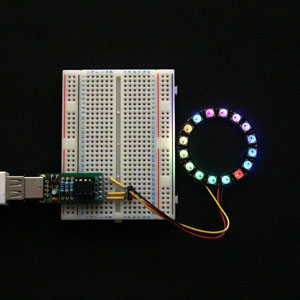

Blinkstick-pro-1-0-adafruit-neopixel-ring

Control Adafruit NeoPixels

BlinkStick Pro has been designed to support Adafruit NeoPixels or any other WS2812 based LED strips, rings and matrices. One BlinkStick Pro can control up to 196 LEDs!

Hack basic LED strips

BlinkStick Pro is ideal to hack into IKEA DIODER or any other similar LED strip turning it into an Ambilight clone.

Blinkstick-ikea-dioder-square
Blinkstick-pro-adafruit-neopixel8x8-notification-300

Notification Icon

Combine BlinkStick Pro and Adafruit NeoPixel 8x8 matrix to create the ultimate notification icon!

Project ideas at your fingertips

Create games and LED animations with lots of guides in the tutorials section.

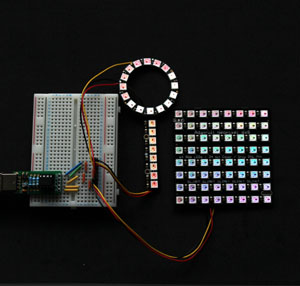

Blinkstick-pro-adafruit-neopixels-300
Blinkstick-pro-led-adapter-side-square-300

LED Adapter Board

LED adapter board is an accessory to BlinkStick Pro and lets you easily connect single color LED strips to control them with your computer. Find out more here!

Smart Pixels

Need some individually controlled pixels for your BlinkStick Pro? We have you covered!

Blinkstick-pro-smart-pixels-240

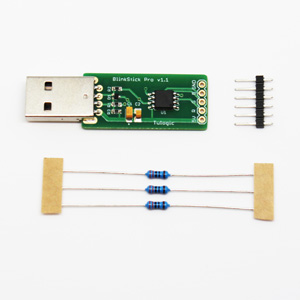

BlinkStick Pro Features

  • Comes as a kit. You will need to build it yourself
  • Integrated ATTiny85 with BlinkStick Pro firmware
  • Turn basic LED strip controllers into USB-controlled LED lights
  • Maximum power draw 17 mA
  • Powered by computer's USB port
  • Works on Windows, Linux and Mac OSX without the need of any additional drivers
  • Supported on a wide range of programming languages
  • Supports USB 1.1/2.0/3.0
  • Dimensions - length: 50 mm, width: 16 mm, height: 10 mm

Presoldered Features

  • Same as above, just comes already presoldered for you ready to build your project

Bundle Features

  • This is an ideal solution if you don't want to do any soldering yourself
  • Includes BlinkStick Pro and LED adapter board. Adapter is also available to purchase on it's own.
  • You will need basic common anode 12V single color LED strips to connect to the adapter and a suitable power supply

Other BlinkStick products

Blinkstick-nano-main-300

BlinkStick Nano

Notification light for your computer running Linux, Windows or Mac OSX with LEDs on top and bottom.

  • Our smallest notification light
  • Two individually controlled bright full color RGB LEDs
  • Plug-and-play without the need of any drivers

Find out more Buy

Blinkstick-flex-main-300

BlinkStick Flex

Flexible LED strip and BlinkStick LED controller in one package.

  • Up to 32 LEDs on a single flexible strip
  • Each RGB LED can be controlled individually
  • Powered directly from computer's USB port
  • Sticks to any flat surface

Find out more Buy


BlinkStick Square

Eight individually addressable LEDs shaped in a square

  • Integrated BlinkStick controller
  • Micro USB connector
  • Small size, lots of brightness
  • Pre-assembled and ready to use

Find out more Buy

Blinkstick-square-enclosure-red-square-400

BlinkStick Square Enclosure

We now have 3D printed enclosures for BlinkStick Square

  • 3D printed with PLA plastic
  • Very easy to assemble
  • We will send it assembled if you order Square and enclosure

Find out more Buy


BlinkStick Strip

Eight individually addressable LEDs shaped in one line

  • Integrated BlinkStick controller
  • Micro USB connector
  • Small size, lots of brightness
  • Pre-assembled and ready to use

Find out more Buy

Blinkstick-strip-enclosure-on-square-400

BlinkStick Strip Enclosure

We now have 3D printed enclosures for BlinkStick Strip

  • 3D printed with PLA plastic
  • Very easy to assemble
  • We will send it assembled if you order Strip and enclosure

Find out more Buy

Blinkstick-pro-led-adapter-main-square-400

BlinkStick Pro LED Adapter

Adapter for BlinkStick Pro to control single color LED strips

  • Connects with BlinkStick Pro
  • Terminals for LED strip and standard power supply jack
  • Controls all LEDs on the strip with the same color

Find out more Buy

Blinkstick-pro-smart-pixels-main-square-300

BlinkStick Pro Smart Pixels

Easy to solder LED pixels for BlinkStick Pro.

  • Control up to 192 smart pixels with one BlinkStick Pro
  • Needs just 3 wires to connect to BlinkStick Pro
  • Can be chained together to create wired LED strip

Find out more Buy


BlinkStick

DYI notification light for your computer running Linux, Windows or Mac OSX.

  • Comes as a kit
  • Super bright full color RGB LED
  • Plug-and-play without the need of any drivers

Find out more Buy
